Remote Fire Danger Rating System
Easy to Install | Connect Anywhere
Bringing enhanced fire safety to your community with remote fire danger rating sign control.
Smarter Signs
for Safer
Communities
Remote Updates
Update fire danger ratings instantly from any device. No more travelling to each sign location.
Monitor Conditions
Integrated sensors provide real-time environmental data including temperature, humidity, and weather conditions for informed decision making.
Take Action
Empower your community with accurate, up-to-date fire danger information to make informed decisions about outdoor activities and fire safety.

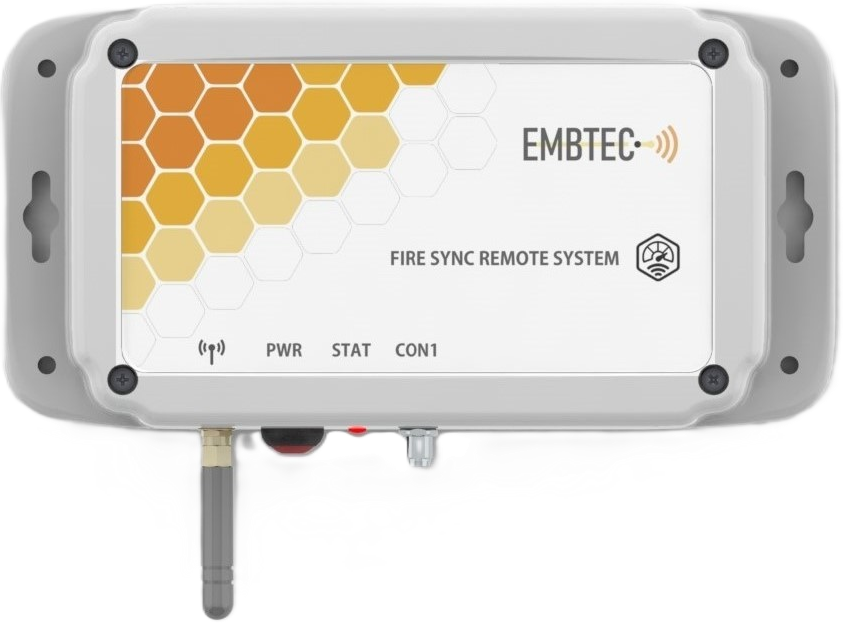

Product Overview
The FireSync system remotely updates fire danger rating signs to bring enhanced fire safety to your community with the latest fire danger information. We take the hassle out of updating every sign in a community and make it the click of a button — enabling residents to make informed decisions about outdoor activities using the latest information.
Improved Rating Communication
Update fire danger ratings with a single click to provide the most accurate information to the community.
Hassle Free Updates
Remote updates removes the requirement of driving to each sign to manually set ratings.
More Signs Without Overhead
Add additional fire danger rating signs in your community without the overhead of updating additional signage.
Tamper Proof and Reliable

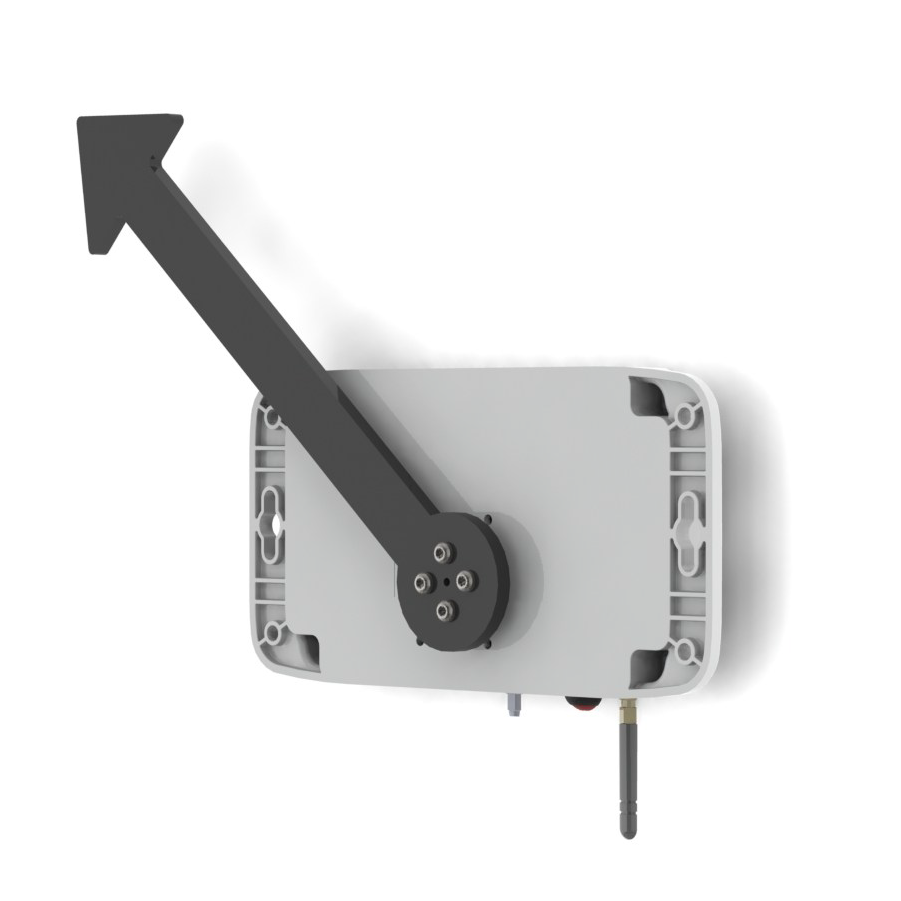

A locking arrow mechanism ensures the sign position is set correctly every time.

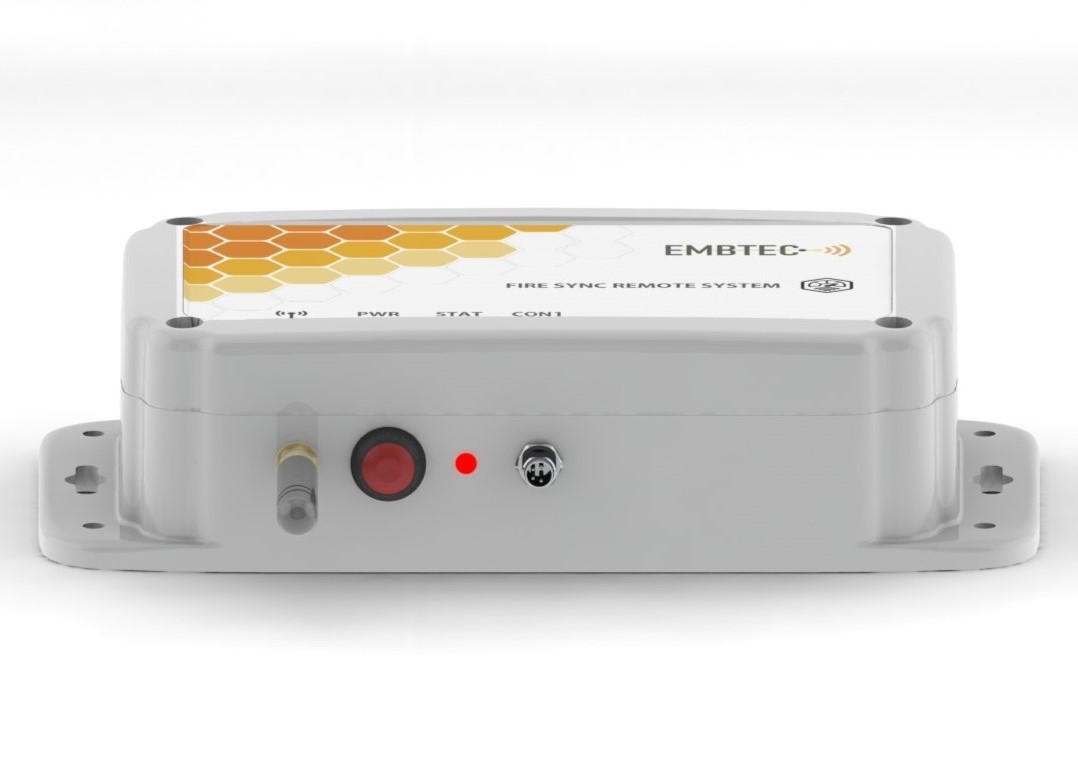

Technical Specifications
Maintenance Free | Reliably Connected
Wireless Communication
- • 3G/LTE Cellular Communication
- • Optional External Antenna (SMA-RP)
Outdoor Rated
- • Operates from -40°C to 60°C
- • IP67 waterproof rated enclosure
- • Integrated humidity vent system (GORE®)
Power Options
- • Internal Li-Ion Backup Power
- • Solar powered charging system (6W)
- • 6 Month battery life without solar power
- • External AC/DC power interface option
Monitoring Parameters
- • Integrated ambient temperature sensor
- • On-board tamper detection sensor
- • Wildfire smoke presence monitoring*
- • Soil humidity and weather conditions
Reliable
- • Locking tamper-proof arrow design
- • Position feedback reported to website
- • Automatic error reporting from sign

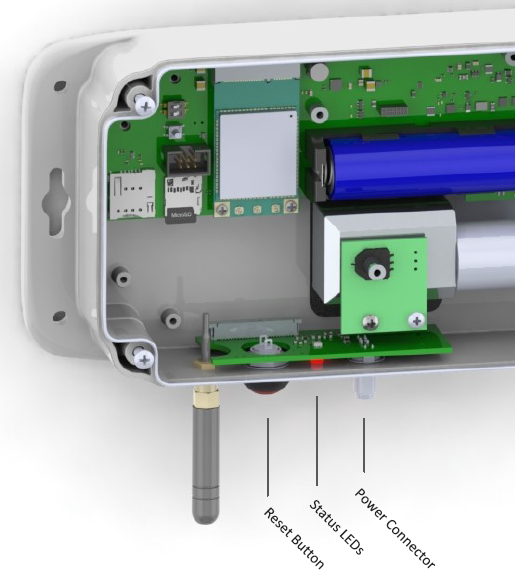

Detailed Specifications
Battery
- • Capacity: 4200mAh
- • Life (No Solar): 6 Months
- • Service Life: 3 Years
- • Protections: OVP, UVP
Communication
- • LTE: B1/2/3/4/5/7/8/28/66
- • WCDMA/3G: B1/2/5/8
- • GSM/EDGE: B2/3/5/8
- • GNSS [Opt.]: GPS/Longitude/Latitude
Power Input
- • Min Voltage: 3.5V
- • Max Voltage: 14V
- • Max Current: 1.2A
Signal Inputs
- • Analog Inputs: 2x 0-5V
- • Analog Input: 1x 0-20mA
- • Digital Channels: UART/RS232
Outdoor Ratings
- • Operating Temperature: -40°C to 60°C
- • Weather Rating: IP67
- • Dimensions: 7.5" x 6" x 2"
- • Arrow Shaft Cutout: 0.25"

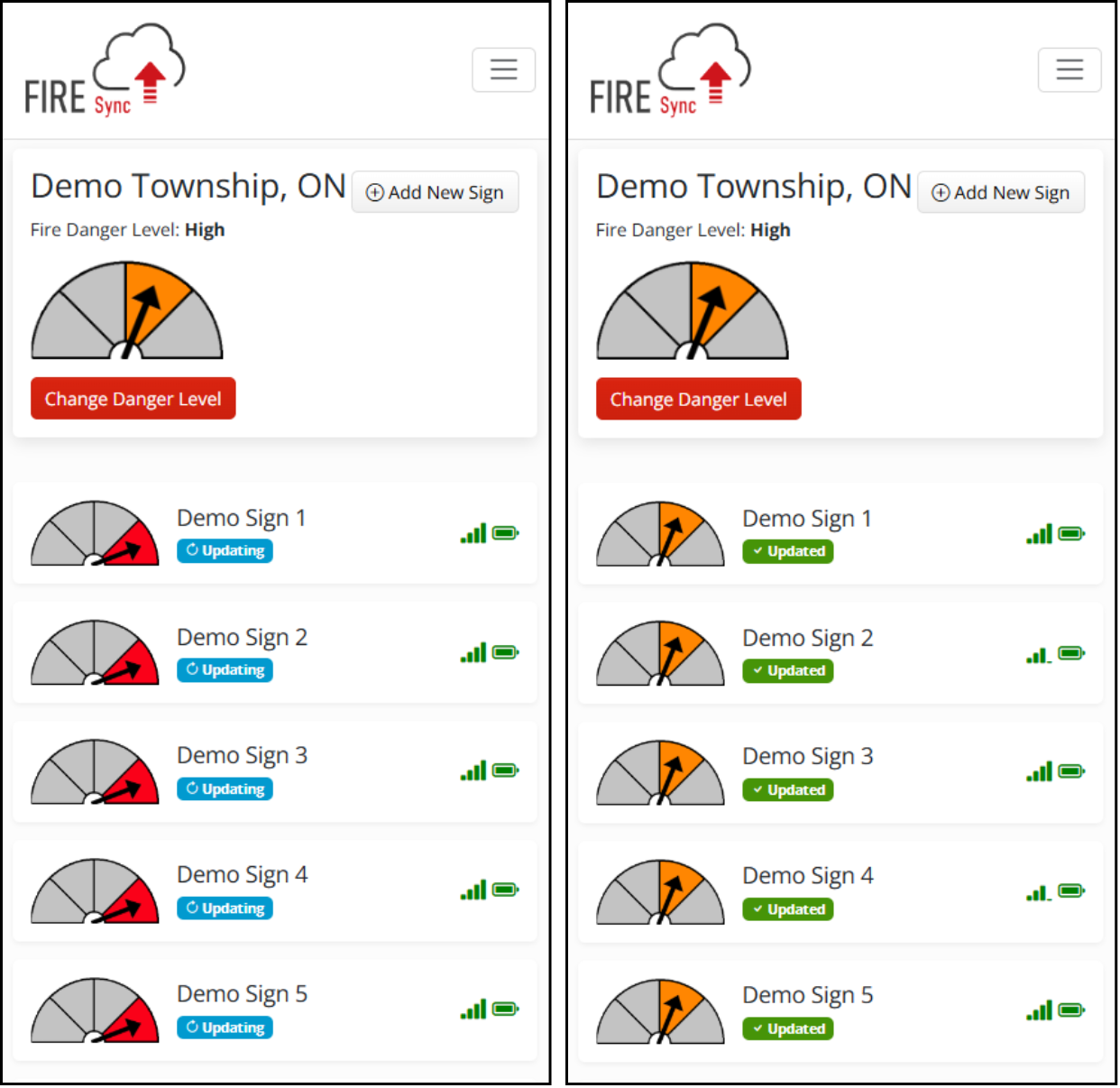

Web Application
Remotely Manage Fire Danger Signs
Cloud Based Application Enables Updates from Anywhere.
Centralized Management
Manage all your fire danger rating signs from a single, intuitive web interface. Monitor status, update danger ratings, and trend sensor data.
- • Real-time status monitoring
- • Bulk update capabilities
- • Historical data tracking
- • Custom alert notifications
- • Integration with your community's webpage
One-Click Updates
Update all signs with a single click. Change danger levels for all signs in the region, or customize individual sign settings as needed.
Easy Configuration
Intuitive setup process for quick deployment across multiple locations.
Real-Time Monitoring
Live status updates, battery levels, and communication health monitoring for all connected signs.
Smart Alerts
Automated notifications for maintenance needs, communication issues, and environmental conditions.
